Why Boiler Level Control Is a Safety-Critical Function
Boiler water level control is not just about operational efficiency — it is a statutory safety requirement under Indian Boiler Regulations and international standards including BS EN 12953 and ASME. Loss of water level in a steam boiler leads to overheating, tube failure, and potential catastrophic boiler explosion. High water level causes wet steam, water carryover, and water hammer in steam distribution systems.
Spirax Sarco’s boiler level control range provides high-integrity, standards-compliant level management for boilers of all sizes. PureSys India supplies Spirax Sarco level controls — visit the Spirax Sarco brand page or boiler equipment section.
Two Control Strategies: On/Off and Modulating
On/Off Level Control
The feedwater pump switches ON at a preset low level and OFF at a preset high level. Simple, robust, and suitable for most fire-tube boilers and smaller water-tube boilers. Results in slight level fluctuation (the “pump hysteresis band”) which is acceptable for most applications.
Modulating Level Control
A continuous signal modulates a feedwater control valve (or variable speed pump) to maintain a steady water level. Essential for large capacity boilers where on/off control would cause excessive level swings and surging. Provides superior steam quality and reduced stress on the boiler structure.
Spirax Sarco Level Sensing Technologies
1. Float-Operated Level Controls
A physical float in an external chamber responds to water level changes. As the float moves, it activates magnetic reed switches at precise level points — triggering pump start/stop and alarm outputs.
- Simple, reliable mechanical principle — no electronics in the sensing element
- Suitable for on/off pump control and high/low alarms
- Installed in an external chamber mounted on the boiler side
- No calibration required — switchpoints fixed by float position
- Robust — unaffected by water conductivity variations
2. Conductivity Probe (Electrode) Level Controls
Multiple probes cut to specific lengths are installed in the boiler or an external chamber. Boiler water completes an electrical circuit when it contacts a probe tip — the controller detects which probes are energised and determines the water level band.
Key Spirax Sarco probe models:
- LP40: Conductivity electrode probe — standard boiler level detection
- LP21: High-integrity probe for safety-critical low-water limiter duty
- PA420: Preamplifier unit — signal conditioning for probe inputs to the controller
- No moving parts — low maintenance
- Multiple switchpoints from a single probe assembly
- Can be installed directly in the boiler shell or external chamber
- Switchpoints set by cutting probe rod to length — fixed once installed
- Requires water of sufficient conductivity (unsuitable for demineralised water boilers)
3. Capacitance Probe Level Controls
Capacitance probes measure the change in electrical capacitance along the probe length as water level changes — providing a continuous analogue level signal (typically 4–20 mA). This enables modulating control, unlike conductivity probes which provide only discrete switching points.
- Continuous level signal — enables modulating feedwater control
- Adjustable switchpoints via controller (no need to cut probes)
- Suitable for low-conductivity and demineralised water systems
- Used in larger boilers requiring tight level control
Spirax Sarco Level Control Systems
LCSR5000 — High-Integrity Boiler Level Control System
The LCSR5000 is Spirax Sarco’s flagship high-integrity boiler water level control and protection system, designed to comply with BS EN 12953, BG01 (Shell Boiler Best Practice Guide), and equivalent standards.
- Self-monitoring safety system — continuously checks its own integrity
- Integrates level control and high-integrity low-water alarm/cutout in one system
- Uses LP21 high-integrity probes with PA420 preamplifiers
- Meets requirements for “high-integrity” protection as defined by UK/EU boiler standards
- Suitable for unattended boiler operation
- Data logging and fault history for maintenance records

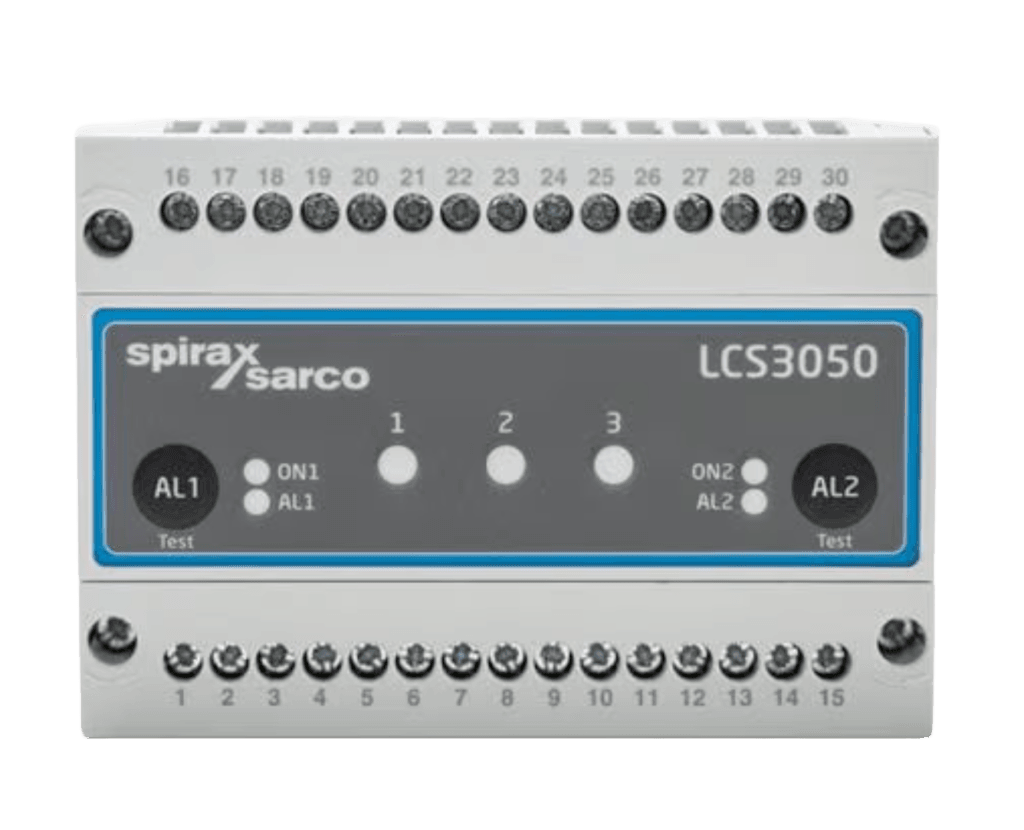

LCS3050 — Boiler Level Controller
The LCS3050 is a versatile boiler level controller for on/off and modulating control applications:
- Works with conductivity probes (LP40/LP21) and capacitance probes
- Configurable for on/off pump control or modulating valve output (4–20 mA)
- Multiple level alarm outputs (high level, low level, very low level)
- Suitable for fire-tube and water-tube boilers
LCR2251 / LCR2652 — Level Controllers
Modular level controllers for integration with Spirax Sarco probe systems — providing pump control outputs, alarm relays, and 4–20 mA transmitter outputs for SCADA/BMS integration.
Selection Guide
| Boiler Type | Control Strategy | Recommended Sensing | System |
|---|---|---|---|
| Small fire-tube (<5 t/h) | On/Off | Float or conductivity probe | LCS3050 + LP40 |
| Medium fire-tube (5–20 t/h) | On/Off + alarm | Conductivity probes | LCSR5000 |
| Large water-tube (>20 t/h) | Modulating | Capacitance probe | LCS3050 + capacitance |
| Unattended boiler operation | On/Off + high integrity | LP21 high-integrity probes | LCSR5000 |
| DM water / low conductivity | On/Off or modulating | Capacitance probe | LCS3050 |
Regulatory Note
Indian Boiler Regulations (IBR) require minimum and maximum water level protection on all registered boilers. Spirax Sarco LCSR5000 systems meet the international equivalent standards. Always consult a certified boiler inspector for compliance in your specific state jurisdiction.
