VALSTEAM ADCA
Clean Steam Systems & Products
Complete Valsteam ADCA range for pharmaceutical, food, biotech and hygienic clean steam systems — steam traps, pressure regulators, control valves, safety valves, pipeline ancillaries and special equipment. All SS316L, tri-clamp, CIP/SIP ready.
VALSTEAM ADCA
Clean Steam Traps
All stainless steel thermostatic steam traps and air vents designed for clean steam, pharmaceutical and food-grade steam systems. Hygienic construction, no risk of product contamination.
Steam Traps
Thermostatic balanced pressure steam traps specially designed for hygienic applications with clean steam such as CIP/SIP, sterilizers, autoclaves and mains drainage.

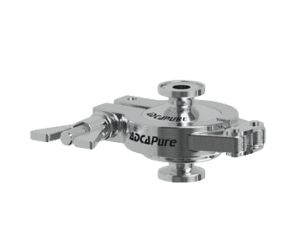

TSS7
ADCA
TSS7
Product Type: All-SS thermostatic steam trap (compact)
Rating: PN 16
Size / Connection: DN 15, 20 — Threaded / Tri-clamp
Best for: Compact installations, pharmaceutical tracing, clean steam distribution.

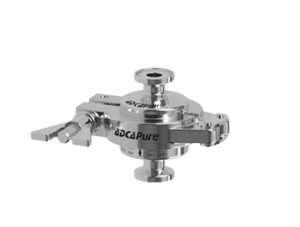

TSS6
ADCA
TSS6
Product Type: All-SS thermostatic steam trap & air vent
Rating: PN 16
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: Clean steam mains, pharmaceutical process, steam sterilisation.

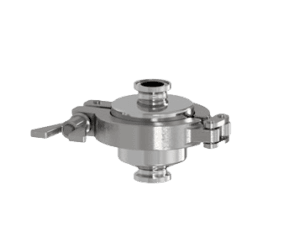

TSS6H
ADCA
TSS6H
Product Type: Sensitive thermostatic trap — high capacity
Rating: PN 16
Size / Connection: DN 20–25 — Threaded / Tri-clamp
Best for: High-capacity clean steam applications, large sterilisers, autoclaves.

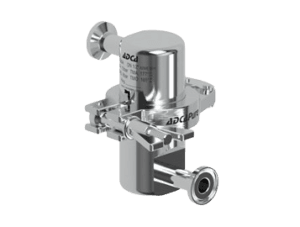

TSS6A
ADCA
TSS6A
Product Type: All-SS thermostatic steam trap & air vent
Rating: PN 16
Size / Connection: DN 15–25 — Tri-clamp (aseptic)
Best for: Aseptic processes, biotech, food-grade steam lines requiring CIP/SIP.
VALSTEAM ADCA
Clean Steam Pressure Regulators
Direct-acting and pilot-operated sanitary pressure reducing valves for clean steam and hygienic process systems. All wetted parts in stainless steel, crevice-free design for CIP/SIP compliance.
Pressure Regulators
From the simplest, direct action valve, to the most sophisticated pilot operated valve, we assure a wide range of options, varying in different types of construction.
P130L
P130L
VALSTEAM ADCA
Product Type: Low-flow direct-acting diaphragm PRV
Rating: PN 16
Size / Connection: DN 15 — Threaded / Tri-clamp
Best for: Low flow clean steam pressure control, laboratory and small process lines.
P130
P130
VALSTEAM ADCA
Product Type: Direct-acting spring-loaded diaphragm PRV
Rating: PN 16
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: General clean steam pressure reduction, pharmaceutical and food process.
P130H
P130H
VALSTEAM ADCA
Product Type: Direct-acting balanced plug PRV
Rating: PN 25
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: Higher-pressure clean steam, stable outlet pressure under variable inlet.
P130G
P130G
VALSTEAM ADCA
Product Type: Direct-acting balanced plug PRV — hygienic
Rating: PN 25
Size / Connection: DN 15–25 — Tri-clamp
Best for: Hygienic process lines, food and beverage clean steam pressure control.
P147
P147
VALSTEAM ADCA
Product Type: Sanitary pilot-operated PRV
Rating: PN 16
Size / Connection: DN 15–40 — Tri-clamp
Best for: High-accuracy clean steam pressure regulation for critical process applications.
P161
P161
VALSTEAM ADCA
Product Type: Angle-design direct-acting diaphragm PRV
Rating: PN 16
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: Angle-body layout for compact pipework, clean steam and hygienic media.
P160G
P160G
VALSTEAM ADCA
Product Type: Angle-design direct-acting diaphragm PRV — hygienic
Rating: PN 16
Size / Connection: DN 15–25 — Tri-clamp
Best for: Hygienic angle-body PRV for food, beverage and pharmaceutical steam.
PS130
PS130
VALSTEAM ADCA
Product Type: Direct-acting pressure sustaining valve
Rating: PN 16
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: Back-pressure control on clean steam systems, pressure sustaining on mains.
BKR2
BKR2
VALSTEAM ADCA
Product Type: Sanitary tank blanketing regulator
Rating: PN 10
Size / Connection: DN 15–20 — Tri-clamp
Best for: Tank blanketing with clean steam or inert gas — pharmaceutical and biotech.
P173
P173
VALSTEAM ADCA
Product Type: Dome/spring-loaded direct-acting pressure regulator
Rating: PN 25
Size / Connection: DN 15–25 — Threaded / Tri-clamp
Best for: Precise pressure regulation for clean steam and sterile process gas lines.
VALSTEAM ADCA
Hygienic Control Valves
Single-seated and multi-way hygienic and aseptic control valves for modulating flow on clean steam, WFI and sterile process lines. Electropolished SS316L internals, full CIP/SIP capability.
Control Valves
From the simplest, direct action valve, to the most sophisticated pilot operated valve, we assure a wide range of options, varying in different types of construction.
V926A
V926A
VALSTEAM ADCA
Product Type: Single-seated two-way aseptic control valve (angle)
Rating: PN 16
Size / Connection: DN 15–50 — Angle / Tri-clamp aseptic
Best for: Aseptic flow control on clean steam, WFI, sterile liquids — biotech and pharma.
V926H
V926H
VALSTEAM ADCA
Product Type: Single-seated two-way hygienic control valve (angle)
Rating: PN 16
Size / Connection: DN 15–50 — Angle / Tri-clamp
Best for: Hygienic flow modulation for food and beverage, dairy, clean steam.
V928
V928
VALSTEAM ADCA
Product Type: Two-way and three-way hygienic control valve
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: Mixing or diverting on clean steam, CIP/SIP circuits, beverage processing.
VALSTEAM ADCA
Aseptic Safety Relief Valves
Angle-type aseptic safety relief valves for overpressure protection on clean steam and sterile process systems. All SS316L, electropolished, FDA-compliant materials.
SRV6
SRV6
VALSTEAM ADCA
Product Type: Aseptic safety relief valve — angle connections
Rating: PN 16
Size / Connection: DN 15–25 — Angle / Tri-clamp aseptic
Best for: Overpressure protection on clean steam generators, autoclaves, pharma vessels.
SRV8
SRV8
VALSTEAM ADCA
Product Type: Aseptic safety relief valve — angle connections (higher capacity)
Rating: PN 16
Size / Connection: DN 20–40 — Angle / Tri-clamp aseptic
Best for: High-capacity overpressure relief for large clean steam and sterile systems.
VALSTEAM ADCA
Pipeline Ancillaries
Sanitary air vents, vacuum breakers, sight glasses, check valves, ball valves and pressure gauges for clean steam and hygienic process pipework. Full crevice-free tri-clamp range.
SAV10
SAV10
VALSTEAM ADCA
Product Type: Sanitary air vent — liquid applications
Rating: PN 10
Size / Connection: DN 15, 20 — Tri-clamp
Best for: Air venting on clean steam and WFI distribution pipework, vessel venting.
VBS17
VBS17
VALSTEAM ADCA
Product Type: Sanitary vacuum breaker
Rating: PN 10
Size / Connection: DN 15, 20 — Tri-clamp
Best for: Vacuum break on clean steam systems to prevent siphoning and contamination.
SWS
SWS
VALSTEAM ADCA
Product Type: Sanitary sight glass / flow indicator
Rating: PN 10
Size / Connection: DN 15–50 — Tri-clamp
Best for: Visual flow verification on clean steam, WFI, and hygienic process lines.
SRT10
SRT10
VALSTEAM ADCA
Product Type: All-SS disc check valve
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: Non-return protection on clean steam and sterile process pipework.
M3HP
M3HP
VALSTEAM ADCA
Product Type: Three-piece high-purity ball valve — isolating
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: High-purity isolation on clean steam generators, distribution and process tie-ins.
M3H
M3H
VALSTEAM ADCA
Product Type: Three-piece hygienic ball valve — isolating
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: Hygienic isolation on food, beverage and pharmaceutical steam pipework.
SMAN-63
SMAN-63
VALSTEAM ADCA
Product Type: Sanitary pressure gauge
Rating: PN 16
Size / Connection: DN 63 dial — Glycerine-filled, SS Bourdon
Best for: Pressure monitoring on clean steam and sterile process piping systems.
VALSTEAM ADCA
Special Equipment
High-efficiency clean steam filters, moisture separators, humidifiers, sample coolers and steam injectors for pharmaceutical, food and biotech clean steam applications.
ISC20i
ISC20i
VALSTEAM ADCA
Product Type: High-efficiency culinary steam / gas filter
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: Removal of particles from culinary steam and process gases — food and beverage.
ISH10i
ISH10i
VALSTEAM ADCA
Product Type: High-efficiency steam and compressed air filter
Rating: PN 16
Size / Connection: DN 15–50 — Tri-clamp
Best for: Fine filtration of clean steam and compressed air in pharmaceutical and biotech.
ISFE
ISFE
VALSTEAM ADCA
Product Type: Sintered SS filter elements
Rating: PN 16
Size / Connection: Various — Tri-clamp compatible
Best for: Replacement filter elements for ISC20i / ISH10i — 0.2 µm to 5 µm ratings.
S10H
S10H
VALSTEAM ADCA
Product Type: Baffle moisture separator — steam pipelines
Rating: PN 16
Size / Connection: DN 15–50 — Threaded / Flanged / Tri-clamp
Best for: Moisture removal from clean steam mains, improving steam quality at point of use.
S10HV
S10HV
VALSTEAM ADCA
Product Type: Centrifugal moisture separator
Rating: PN 16
Size / Connection: DN 25–100 — Flanged / Tri-clamp
Best for: High-efficiency centrifugal separation for clean steam — low pressure drop.
S11
S11
VALSTEAM ADCA
Product Type: Centrifugal moisture separator — compact
Rating: PN 16
Size / Connection: DN 15–50 — Threaded / Tri-clamp
Best for: Compact centrifugal separator for pharmaceutical clean steam distribution.
DSHS
DSHS
VALSTEAM ADCA
Product Type: Hygienic direct steam injection humidifier
Rating: PN 16
Size / Connection: Various — Duct mount / Tri-clamp
Best for: Clean steam humidification for controlled environments, clean rooms, HVAC.
SC32P
SC32P
VALSTEAM ADCA
Product Type: Helical-coil sample cooler
Rating: PN 16
Size / Connection: DN 15–25 — Tri-clamp
Best for: Cooling clean steam condensate samples for water quality analysis.
SSI115
SSI115
VALSTEAM ADCA
Product Type: Clean steam injector
Rating: PN 10
Size / Connection: DN 15–25 — Tri-clamp
Best for: Direct clean steam injection for heating WFI and purified water in vessels.
Need Help Designing Your Clean Steam System?
Our engineers specify the right Valsteam ADCA components for your clean steam generation, distribution and point-of-use requirements — pressure ratings, connection standards and validation documentation.
