CONDENSATE RECOVERY SYSTEMS
Recover Every Drop — Maximise Steam System Efficiency
Authorized partners for Spirax Sarco & Gestra — pressure-powered pumps, packaged recovery units, flash vessels and pump-trap combinations to return condensate and recover energy.
Spirax Sarco
Self-contained condensate recovery pumps using steam or compressed air as motive power — no electricity, no cavitation, ideal for hazardous areas.
CONDENSATE RECOVERY
Full range of mechanical and electric systems for maximum steam plant efficiency. The APT series provides motive-steam-powered pumping for complex pressure differentials; MFP series for high-capacity process applications.

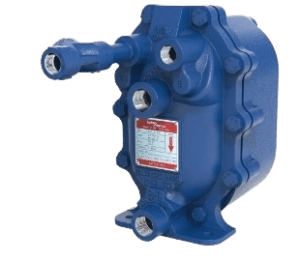

APT 14 Series Pressure Powered Pumps
SPIRAX SARCO
APT14, APT14HC and APT14SHC Automatic Pump Traps
Motive gas: Steam or compressed air/gas • Max back pressure: 17.2 barg • Condensate temp: up to 100°C • Body: SG Iron / Stainless Steel • Connection: Screwed BSP / Flanged • Capacity: Up to 1,400 kg/h
✓ No Electric Motor✓ No Cavitation✓ Hazardous Area Safe✓ Self-Regulating✓ Low Maintenance✓ IBR Compliant
APT10 / APT10SS
SPIRAX SARCO
APT10 / APT10SS
Variants: Standard, High-Pressure and Stainless Steel • Motive: Steam, compressed air or nitrogen • Discharge pressure: Up to 40 barg (HP) • Materials: Ductile Iron, Carbon Steel, SS316 • Application: Condensate return against high back-pressure
✓ High Pressure Option✓ Multiple Materials✓ IBR Compliant✓ Energy Recovery✓ ATEX Safe

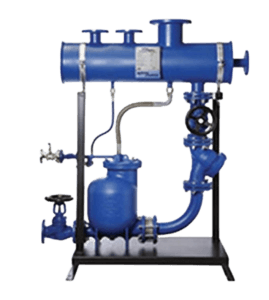

Packaged Condensate Recovery Units
SPIRAX SARCO
CRU Condensate Recovery Unit
Type: Pre-assembled packaged units of following models
APT14HC-PPU
MFP14-PPU (Vented)
• Tank: 100–3,000 litre insulated receiver • Pump: Electric centrifugal or pressure-powered • Controls: Level switches, controller, safety valve included • Connection: Flanged inlet/outlet • Standard: IBR compliant
✓ Plug-and-Play✓ Reduces Installation Time✓ Insulated Tank✓ IBR Compliant✓ Electric or Motive Power

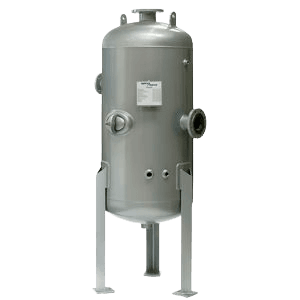

Flash Vessel (FV Series)
SPIRAX SARCO
Flash Vessel (FV Series)
Function: Recovers flash steam from high-pressure condensate for low-pressure steam header • Operating pressure: 0.5–10 barg • Body: Carbon Steel, insulated • Sizes: DN150–DN600 • Standard: IBR, PED
✓ Flash Steam Recovery✓ Up to 15% Energy Saving✓ IBR Certified✓ Carbon Steel Body✓ Multiple Sizes
GESTRA
Self-contained condensate recovery pumps using steam or compressed air as motive power — no electricity, no cavitation, ideal for hazardous areas.
CONDENSATE RECOVERY
Full range of mechanical and electric systems for maximum steam plant efficiency. The APT series provides motive-steam-powered pumping for complex pressure differentials; MFP series for high-capacity process applications.
GESTRA PUMP TRAPS & CRS
GESTRA
Gestra Pump Traps
Function: Combined steam trap + condensate pump • Motive: Steam pressure differential • Size: DN15–DN50 Screwed/Flanged • Max temp: 250°C • Max pressure: 40 barg • Body: Carbon Steel / Stainless Steel
Gestra pump traps, CRS like UNA PK and others are available on import, please drop an email.✓ Combined Trap & Pump✓ No Moving Parts✓ High Temp Duty✓ 3-Year Guarantee✓ IBR Certified
Valsteam ADCA
Compact inline CRUs and packaged electric condensate recovery units — engineered for pressurised and low-head steam plant condensate return applications.
CONDENSATE RECOVERY
Valsteam ADCA offers a complete range — from compact ADCAMat inline units to large ADCAMat ECRU packaged systems — for pressurised, gravity and pump-based condensate return.
VALSTEAM ADCA — Condensate Recovery Units
VALSTEAM ADCA
ADCAMat — Compact CRU for small-to-medium steam systems. Integrates trap, check valve and strainer. Up to 14 bar, SS construction.
ADCATherm — Thermostatic recovery module for sub-cooling applications. Holds condensate until cooled. DN15–DN50, PN40.
ADCA CRS — Pressure-operated pump. Steam or compressed air motive. Capacity up to 6,080 kg/h. Max 185°C. No electricity required.
ADCAMat ECRU — Horizontal packaged electric CRU. Capacity up to 30 m³/h. 3-phase electric drive. Pre-assembled and factory-tested.
ADCAMat ECRUV — Vertical electric CRU. Capacity up to 4 m³/h. Compact footprint for space-constrained installations.
ADCAMat POPS-K — Packaged pressure-operated pumping unit. Steam or air motive. No electricity. Ideal for hazardous areas.
PureVAL
PureVAL condensate recovery units and flash steam separators by Precision Controls — engineered to return hot condensate to the boiler, recover flash steam, and maximise steam plant efficiency.
CONDENSATE RECOVERY
PureVAL offers packaged condensate recovery units, flash steam separators, condensate pumping units, and blowdown vessels for complete steam condensate management.
PUREVAL — Condensate Recovery Units & Flash Separators
PUREVAL
Flash Steam Separator — Vertical separator for recovering low-pressure flash steam from hot condensate. DN80–DN300, carbon steel, 0.5–4 bar g. Up to 85% flash steam recovery.
Condensate Recovery Unit (CRU) — Packaged unit with pump, receiver, level controls and pipework. Capacity 500–10,000 kg/h. Electric or pneumatic drive. IBR compliant, max 10 bar.
Condensate Pumping Unit — Mechanical or electric-driven for low-head condensate return. Receiver 50–500 litres. Centrifugal or submersible pump. Max 98°C, max head 30m.
Blowdown Vessel — Pressurised vessel for safe boiler blowdown disposal. Capacity 50–1,000 litres. ASME/IBR certified. Inlet up to 10 bar. Water injection and flash steam recovery cooling.
Condensate Recovery System Design & Engineering
Our engineers design complete condensate return systems — pump sizing, flash vessel calculations, pipe sizing and IBR documentation. Recover up to 20% of boiler energy.
