PureVAL Control Valves

ADCATrol two-way, three-way and self-acting temperature control valves — engineered for precise flow control in industrial steam and process applications.

Products › Valves › Control Valves › PureVAL

PureVAL

Gestra float & thermostatic steam traps from the UNA ball float series — engineered for reliable continuous condensate drainage across SG iron, carbon steel, and stainless steel body options, covering pressures from PN 25 up to PN 160 for demanding industrial steam applications.

Two Way Control Valves

• Pneumatic Control Valves
• Piston Valves (SW / SCR)
• Piston Valves (Flanged End)
• Cast Steel Y Type Strainers (Screwed Ends / Socket Weld)
• Cast Steel Y Type Strainers (Flanged End)
• Moisture Separators
• Pressure Relief Cast Steel Safety Valves
• Steam Pressure Reducing Stations
• PRS
• Flow Check Valves
• PRDS Valves
• Combined Pressure Reducing Cum De-Superheating Valves
• Steam Traps
• Forged Valves
• Three Way Control Valves
• Pressure Relief Safety Valves
• Condensate Return Pump Systems
• Flash Steam Separators
• Ball Float Steam Traps

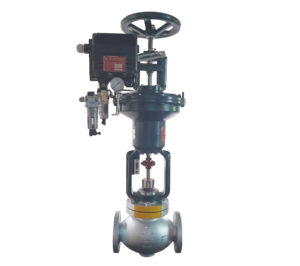

Pneumatic Control Valve

Precision Controls

Pneumatic Control Valves

Type: Pneumatic Globe Control Valve
Body: Carbon Steel (A216 Gr. WCB) / Alloy Steel (A217 Gr. WC6) / Stainless Steel (CF8M)
Sizes: 15 NB – 300 NB
Pressure Rating: ANSI Class 150 / 300 / 600 / 900 / 1500
Rangeability: 40:1
Leakage Class: ANSI / FCI 70.2
Bonnet: Standard / Extended Cooling Fins
Connections: Flanged / Butt Weld

Best for: High pressure drop, critical process control, steam, gases & industrial fluid applications

✔ Pneumatic Actuation ✔ IBR Approved Construction ✔ Hand-wheel Option Available

Three Way Control Valves

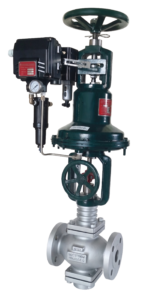

Three Way Control Valve

GESTRA

Three-Way Control Valves

Type: Three-Way Pneumatic Control Valve
Service: Mixing / Diverting Applications
Body: Carbon Steel (A216 Gr. WCB) / Alloy Steel (A217 Gr. WC6) / Stainless Steel (CF8M)
Sizes: 15 NB – 300 NB
Pressure Rating: ANSI Class 150 / 300 / 600 / 900 / 1500
Rangeability: 40:1
Leakage Class: ANSI / FCI 70.2

Best for: Flow diverting, fluid mixing, temperature control, level control & pump bypass applications

✔ Mixing & Diverting Service ✔ Pneumatic Actuation ✔ Hand-wheel Option Available

Enquire About PureVAL Control Valves

Our engineers help you select the correct valve type, size, actuator and trim for your specific process conditions and pressure class.
