SPIRAX SARCO — INDIA
Spirax Sarco Pressure Reducing Valves
Direct-acting and pilot-operated PRVs engineered for steam, air, gas, and water service. Precise downstream pressure control with IBR-approved variants for Indian steam installations.
Spirax Sarco
SPIRAX SARCO — DIRECT ACTING
A Direct Acting Pressure Reducing Valve (PRV) is a self-operated valve that automatically reduces a higher inlet pressure to a lower, controlled outlet pressure using only a spring and diaphragm/bellows mechanism — without external power, air supply, or controllers.
BRV Series
- Self-acting operation without external power
- Compact and lightweight design
- Fast response to pressure variations
- Simple installation and maintenance
- Suitable for steam, air, and gases
- Cost-effective pressure control solution
BRV2S & BRV2B
GESTRA
BRV2S & BRV2B
Type: Direct Acting Pressure Reducing Valve • Body: SG Iron • Sizes: ½”–1” / DN15–DN25 • Max Pressure: 25 bar • Max Temp: up to 210°C • Pressure Range: 0.14–8.6 bar • Max Differential Pressure: 17 bar • Connections: Screwed BSP/NPT & Flanged PN25
Suitable for: Steam, compressed air & industrial gases
✔ Compact Design ✔ Self-Acting Operation ✔ Stainless Steel Internals

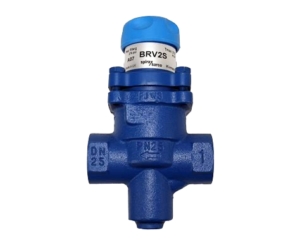

BRV2S SG IRON
SPIRAX SARCO

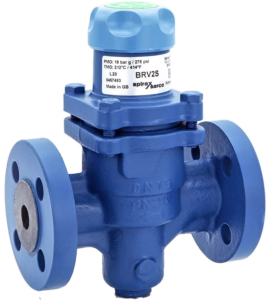

BRV2S
Type: Direct Acting Pressure Reducing Valve • Body: SG Iron • Sizes: ½”–1” / DN15–DN25 • Max Pressure: up to 25 bar • Max Temp: up to 210°C • Pressure Range: 0.14–8.6 bar • Max ΔP: up to 19 bar • Connections: Screwed BSP/NPT
Best for: Steam, compressed air & industrial gas applications
✔ Self-Acting Operation ✔ Stainless Steel Bellows ✔ Compact Design

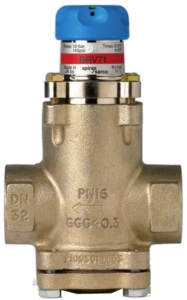

BRV71 & BRV73
SPIRAX SARCO
BRV71 & BRV73
Type: Direct Acting Pressure Reducing Valve • Body: SG Iron • Sizes: 1”–2” / DN25–DN50 • Max Pressure: up to 16 bar • Max Temp: up to 184°C • Pressure Range: 0.14–9.0 bar • Max ΔP: up to 10 bar • Connections: Screwed BSP/NPT & Flanged PN16 / ANSI 150 / JIS 10
Best for: Steam pressure reduction in medium capacity industrial applications
✔ Self-Acting Operation ✔ Stainless Steel Bellows ✔ Compact Balanced Design
SPIRAX SARCO
SPIRAX SARCO — PILOT OPERATED
Pilot operated pressure reducing valves are designed for accurate and stable downstream pressure control in steam, gas, and compressed air applications with varying load conditions. Using a pilot control system, these valves provide superior pressure regulation, higher flow capacity, and smoother operation compared to direct acting valves.
DP SERIES- PILOT OPERATED
Pilot operated pressure reducing valves are designed for accurate and stable downstream pressure control in steam, gas, and compressed air applications with varying load conditions. Using a pilot control system, these valves provide superior pressure regulation, higher flow capacity, and smoother operation compared to direct acting valves.
DP143 & DP143H
GESTRA
DP143 & DP143H
Type: Pilot Operated Pressure Reducing Valve • Body: Cast Steel • Sizes: DN15LC–DN80 • Max Pressure: up to 40 bar • Max Temp: up to 300°C (DP143) / 350°C (DP143H) • Pressure Range: 0.2–24 bar • Max ΔP: up to 26 bar • Connections: ASME 150 / ASME 300 / BS10 Table J Flanged
Best for: Accurate steam pressure control in medium & high pressure industrial steam systems
✔ Pilot Operated Design ✔ IBR Approved ✔ High Temperature Service
DP143, DP143G and DP143H
SPIRAX SARCO
DP143, DP143G, DP143H & DP143Y
Type: Pilot Operated Pressure Reducing Valve • Body: Cast Steel • Sizes: DN15LC–DN80 • Max Pressure: up to 26 bar • Max Temp: up to 120°C (DP143G) / 300°C (DP143) / 350°C (DP143H) • Pressure Range: 0.2–24 bar • Max ΔP: up to 26 bar • Connections: EN1092 PN40 / ANSI 150 / ANSI 300 / BS10 Table J
Best for: Accurate pressure control for steam, compressed air & industrial gas applications
✔ Pilot Operated Design ✔ High Capacity Control ✔ Low Pressure Precision Control

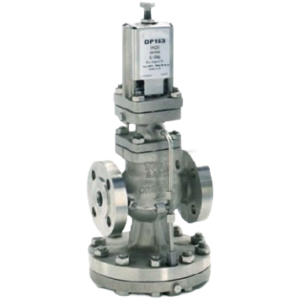

DP163, DP163G and DP163Y
SPIRAX SARCO
DP163, DP163G & DP163Y
Type: Pilot Operated Pressure Reducing Valve • Body: Stainless Steel • Sizes: DN15LC–DN80 • Max Pressure: up to 36.4 bar • Max Temp: up to 250°C • Pressure Range: 0.2–21 bar • Max ΔP: up to 25 bar • Connections: EN1092 PN25/PN40, ASME 150/300 & BS10 Table J
Best for: Hygienic steam, compressed air & clean industrial process applications
✔ Stainless Steel Construction ✔ Pilot Operated Control ✔ High Accuracy Pressure Regulation

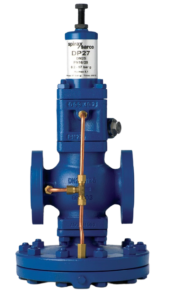

DP27, DP27E, DP27G, DP27GY, DP27R and DP27Y
SPIRAX SARCO
DP27, DP27E, DP27G, DP27GY, DP27R & DP27Y
Type: Pilot Operated Pressure Reducing Valve • Body: SG Iron • Sizes: DN15LC–DN50 • Max Pressure: up to 25 bar • Max Temp: up to 232°C • Pressure Range: 0.2–17 bar (0.2–3 bar for Y models) • Max ΔP: up to 25 bar • Connections: BSP/NPT Screwed, PN16/25, ASME 150/300 & BS10
Best for: Steam, compressed air & industrial gas pressure reducing applications
✔ Pilot Operated Design ✔ Accurate Pressure Control ✔ High Flow Capacity
Request Spirax Sarco PRV Pricing
PureSys India is an authorized Spirax Sarco channel partner. Contact us for datasheets, sizing support, and competitive pricing on the complete Spirax Sarco PRV range.
